Flattend Aluminium Steel

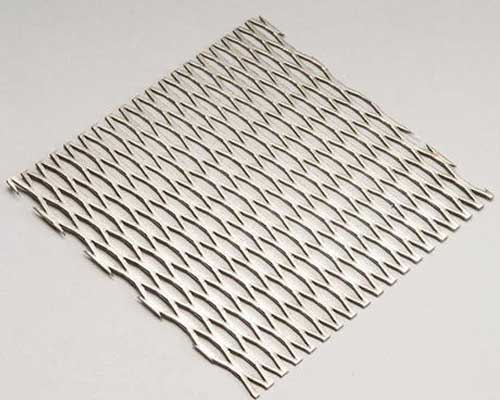

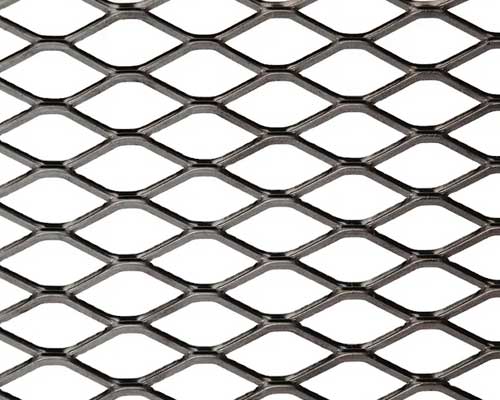

This mesh is manufactured per industry standards using high-quality stainless steel, galvanized iron, or mild steel. It is also available in a variety of widths and gauges to meet the needs of individual clients. This material is sliced and stretched in a variety of diamond-shaped perforations. Expanded Metal Wire Mesh allows for the free flow of light, liquid, sound, and air while providing a beautiful appearance. The Expanded Aluminium Mesh likewise comprises solid aluminum metal sheets that have been sliced and stretched together to produce a diamond pattern. This design may be made in either regular or standard size—the way the metal mesh changes depending on its size and material kind. Furthermore, the sheets can be flattened to get a new metal form through a roller or roll mill. Expanded aluminum mesh is also made in heavy gauges and is thus employed in various applications such as flooring, ramps, and walkways. Furthermore, the material’s versatility in terms of sizes, forms, and applications is also utilized for filtering.

SSMM	MATERIAL ALLOY	AVAILABLE SHEET	AVAILABLE SHEET	AVAILABLE THICKNESS		SWM	LWM	STRAND	MESH WEIGHT PER SQ.FT IN KGS		OPEN AREA	COVERING AREA
MARK	SPECIFICATION	WIDTH IN mm	LENGTH IN mm	mm	mm	mm	mm	mm	1.5 mm THK	2.0 mm THK	%	%
1101	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	40	105	10	0.19	0.25	46	54
1102	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	37	77	9.3	0.19	0.25	46	54
1103	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	21	43	9.3	0.34	0.45	7	93
1104	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	N.A	2	53	136	14	N.A	0.27	43	57
1105	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	N.A	2	60	194	22.5	N.A	0.38	21	79
1105-A	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	N.A	2	65	194	20.5	N.A	0.32	33	67
1106	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	24	63	8	0.25	0.34	29	71
1107	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	13	39	2.2	0.13	0.17	62	38
1109	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	17	25	6.6	0.29	0.39	18	82
1110	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	12	45	5.7	0.36	0.48	1	99
1111	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	9	45	3.9	0.33	0.44	9	91
1112	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	14	25	2.2	0.12	0.16	65	35
1114	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	N.A	2	37	77	12.2	N.A	0.33	30	70
1115	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	37	196	15	0.31	0.41	15	85
1116	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	35	115.5	10.7	0.23	0.31	35	65
1117	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	13	50.4	2.8	0.16	0.22	53	47
1117-A	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	13	50.4	4.2	0.25	0.33	31	69
1125	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	N.A	2	51.5	161	24	N.A	0.47	3	97
1128	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	N.A	2	9.3	46	2.8	N.A	0.30	36	64
1129	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	N.A	2	49.3	115	18.5	N.A	0.38	21	79
1130	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	1.5	2	35	130	10.5	0.23	0.30	36	64
1131	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	0.5	1	8.5	15	1.2	0.04	0.07	68	32
1132	US (AA):1200/IS: 19000	1220 TO 1525 mm	2400 TO 4000 mm	0.9	1.2	20	40	2	0.05	0.06	76	24
