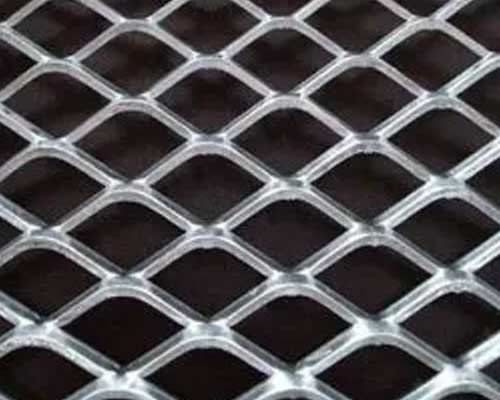

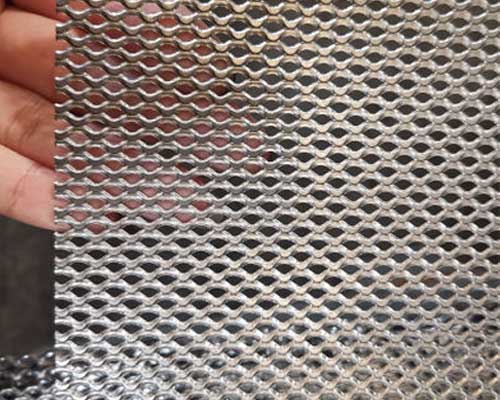

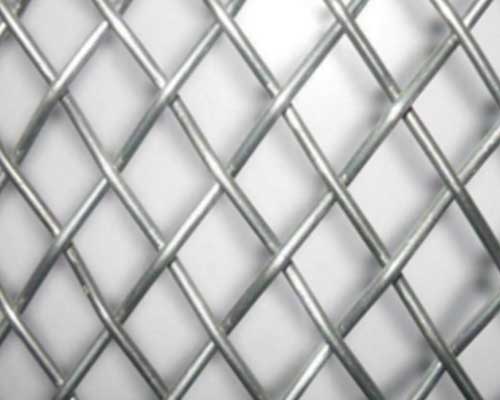

Expanded Stainless Steel Mesh is constructed from a single solid sheet of compressed and stretched material. The enlarged metal grating is ideal for heavyweight bespoke parts cleaning applications and allowing air movement and drainage. There are two types of Expanded Stainless Steel Mesh: regular and flattened. As it comes out of the expanding machine, the metal is referred to as “standard expanded metal.” On the other hand, flattened expanded metal is what happens when ordinary expanded metal is run through a cold rolling steel mill to flatten the expanded stainless steel mesh.
The application dictates whether flattened or regular expanded stainless steel mesh is used. Because the higher centres of the links prevent liquids from gathering in the basket, standard expanded metal is frequently more suitable for parts washing applications. On the other hand, flattened expanded metal may be more beneficial for specific parts handling applications or for slightly lightening larger custom mesh baskets by thinning out the metal mesh.
SSMM | MATERIAL ALLOY | AVAILABLE SHEET | AVAILABLE SHEET | AVAILABLE THICKNESS | SWM | LWM | STRAND | MESH WEIGHT PER SQ.FT IN KGS | OPEN AREA | COVERING AREA | ||
MARK | SPECIFICATION | WIDTH IN mm | LENGTH IN mm | mm | mm | mm | mm | mm | 0.5 mm THK | 1.0 mm THK | % | % |
301 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | N.A. | 1 | 40 | 105 | 10 | N.A | 0.38 | 50 | 50 |
302 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | N.A. | 1 | 37 | 77 | 9.3 | N.A | 0.39 | 50 | 50 |
303 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 21 | 43 | 9.3 | 0.34 | 0.68 | 11 | 89 |
304 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | N.A. | 1 | 53 | 136 | 14 | N.A | 0.40 | 47 | 53 |
305 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | N.A. | 1 | 60 | 194 | 22.5 | N.A | 0.57 | 25 | 75 |
305-A | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | N.A. | 1 | 65 | 194 | 20.5 | N.A | 0.48 | 37 | 63 |
306 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 24 | 63 | 8 | 0.26 | 0.51 | 33 | 67 |
307 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 13 | 39 | 2.2 | 0.13 | 0.26 | 66 | 34 |
309 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | N.A. | 17 | 25 | 6.6 | 0.30 | N.A. | 22 | 78 |
310 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | N.A. | 12 | 45 | 5.7 | 0.36 | N.A. | 5 | 95 |
311 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | N.A. | 9 | 45 | 3.9 | 0.33 | N.A. | 13 | 87 |
312 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 14 | 25 | 2.2 | 0.12 | 0.24 | 69 | 31 |
314 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 37 | 77 | 12.2 | 0.25 | 0.51 | 34 | 66 |
315 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 37 | 196 | 15 | 0.31 | 0.62 | 19 | 81 |
316 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 35 | 115.5 | 10.7 | 0.23 | 0.47 | 39 | 61 |
317 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 13 | 50.4 | 2.8 | 0.16 | 0.33 | 57 | 43 |
317-A | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 13 | 50.4 | 4.2 | 0.25 | 0.49 | 35 | 65 |
325 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 51.5 | 161 | 24 | 0.36 | 0.71 | 7 | 93 |
328 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | N.A. | 9.3 | 46 | 2.8 | 0.23 | N.A. | 40 | 60 |
329 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 49.3 | 115 | 18.5 | 0.29 | 0.57 | 25 | 75 |
330 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 35 | 130 | 10.5 | 0.23 | 0.46 | 40 | 60 |
331 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | N.A. | 8.5 | 15 | 1.2 | 0.11 | N.A. | 72 | 28 |
332 | SS: 304, SS: 316 & SS: 316 L | 600 TO 1220 | 2400 TO 4000 | 0.5 | 1 | 20 | 40 | 2 | 0.08 | 0.15 | 80 | 20 |
