Flattend Stainless Steel

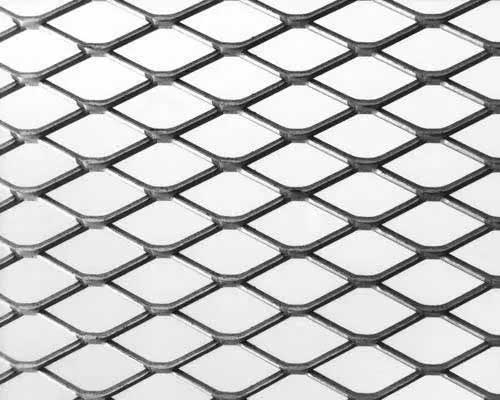

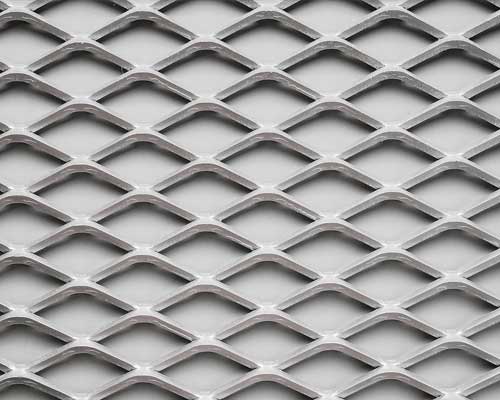

Expanded Stainless Steel Mesh is constructed from a single solid sheet of compressed and stretched material. The enlarged metal grating is ideal for heavyweight bespoke parts cleaning applications and allowing air movement and drainage. There are two types of Expanded Stainless Steel Mesh: regular and flattened. As it comes out of the expanding machine, the metal is referred to as “standard expanded metal.” On the other hand, flattened expanded metal is what happens when ordinary expanded metal is run through a cold rolling steel mill to flatten the expanded stainless steel mesh. The application dictates whether flattened or regular expanded stainless steel mesh is used. Because the higher centers of the links prevent liquids from gathering in the basket, standard expanded metal is frequently more suitable for parts washing applications. On the other hand, flattened expanded metal may be more beneficial for specific parts handling applications or for slightly lightening larger custom mesh baskets by thinning out the metal mesh.

SSMM MATERIAL ALLOY AVAILABLE SHEET  AVAILABLE SHEET  AVAILABLE THICKNESS SWM LWM STRAND MESH WEIGHT PER SQ.FT IN KGS OPEN AREA COVERING AREA
MARK SPECIFICATION WIDTH IN  mm LENGTH IN mm mm mm mm mm mm 1.5 mm THK 2.0 mm THK % %
3301 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 N.A. 1 40 105 10 N.A 0.38 46 54
3302 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 N.A. 1 37 77 9.3 N.A 0.39 46 54
3303 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 21 43 9.3 0.34 0.68 7 93
3304 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 N.A. 1 53 136 14 N.A 0.40 43 57
3305 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 N.A. 1 60 194 22.5 N.A 0.57 21 79
3305-A SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 N.A. 1 65 194 20.5 N.A 0.48 33 67
3306 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 24 63 8 0.26 0.51 29 71
3307 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 13 39 2.2 0.13 0.26 62 38
3309 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 N.A. 17 25 6.6 0.30 N.A. 18 82
3310 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 N.A. 12 45 5.7 0.36 N.A. 1 99
3311 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 N.A. 9 45 3.9 0.33 N.A. 9 91
3312 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 14 25 2.2 0.12 0.24 65 35
3314 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 37 77 12.2 0.25 0.51 30 70
3315 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 37 196 15 0.31 0.62 15 85
3316 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 35 115.5 10.7 0.23 0.47 35 65
3317 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 13 50.4 2.8 0.16 0.33 53 47
3317-A SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 13 50.4 4.2 0.25 0.49 31 69
3325 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 51.5 161 24 0.36 0.71 3 97
3328 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 N.A. 9.3 46 2.8 0.23 N.A. 36 64
3329 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 49.3 115 18.5 0.29 0.57 21 79
3330 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 35 130 10.5 0.23 0.46 36 64
3331 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 N.A. 8.5 15 1.2 0.11 N.A. 68 32
3332 SS: 304, SS: 316 & SS: 316 L 600 TO 1220 2400 TO 4000 0.5 1 20 40 2 0.08 0.15 76 24
