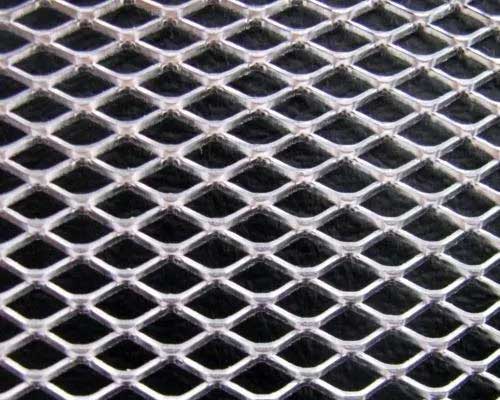

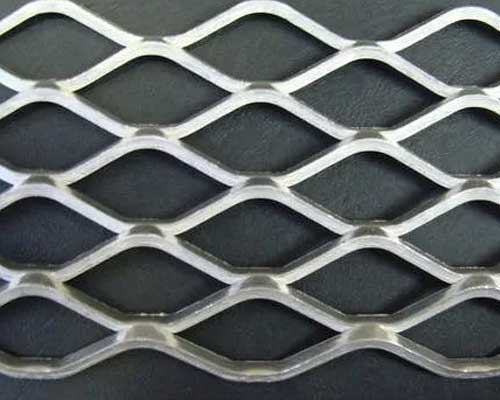

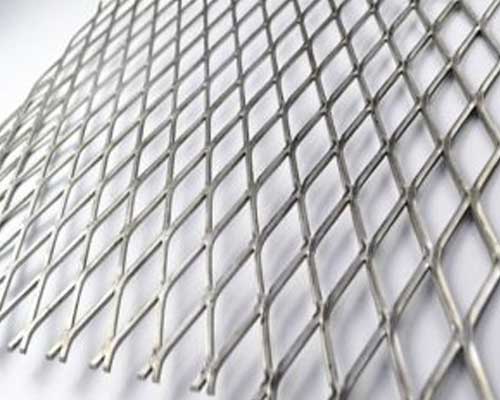

This mesh is manufactured per industry standards using high-quality stainless steel, galvanised iron, or mild steel. It is also available in a variety of widths and gauges to meet the needs of individual clients. This material is sliced and stretched in a variety of diamond-shaped perforations. Expanded Metal Wire Mesh allows for the free flow of light, liquid, sound, and air while providing a beautiful appearance. The Expanded Aluminium Mesh likewise comprises solid aluminium metal sheets that have been sliced and stretched together to produce a diamond pattern. This design may be made in either regular or standard size—the way the metal mesh changes depending on its size and material kind. Furthermore, the sheets can be flattened to get a new metal form through a roller or roll mill. Expanded aluminium mesh is also made in heavy gauges and is thus employed in various applications such as flooring, ramps, and walkways. Furthermore, the material’s versatility in terms of sizes, forms, and applications is also utilised for filtering.
SSMM | MATERIAL ALLOY | AVAILABLE SHEET | AVAILABLE SHEET | AVAILABLE THICKNESS | SWM | LWM | STRAND | MESH WEIGHT PER SQ.FT IN KGS | OPEN AREA | COVERING AREA | ||
MARK | SPECIFICATION | WIDTH IN mm | LENGTH IN mm | mm | mm | mm | mm | mm | 1.5 mm THK | 2.0 mm THK | % | % |
101 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 40 | 105 | 10 | 0.19 | 0.25 | 50 | 50 |
102 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 37 | 77 | 9.3 | 0.19 | 0.25 | 50 | 50 |
103 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 21 | 43 | 9.3 | 0.34 | 0.45 | 11 | 89 |
104 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | N.A | 2 | 53 | 136 | 14 | N.A | 0.27 | 47 | 53 |
105 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | N.A | 2 | 60 | 194 | 22.5 | N.A | 0.38 | 25 | 75 |
105-A | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | N.A | 2 | 65 | 194 | 20.5 | N.A | 0.32 | 37 | 63 |
106 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 24 | 63 | 8 | 0.25 | 0.34 | 33 | 67 |
107 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 13 | 39 | 2.2 | 0.13 | 0.17 | 66 | 34 |
109 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 17 | 25 | 6.6 | 0.29 | 0.39 | 22 | 78 |
110 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 12 | 45 | 5.7 | 0.36 | 0.48 | 5 | 95 |
111 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 9 | 45 | 3.9 | 0.33 | 0.44 | 13 | 87 |
112 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 14 | 25 | 2.2 | 0.12 | 0.16 | 69 | 31 |
114 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | N.A | 2 | 37 | 77 | 12.2 | N.A | 0.33 | 34 | 66 |
115 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 37 | 196 | 15 | 0.31 | 0.41 | 19 | 81 |
116 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 35 | 115.5 | 10.7 | 0.23 | 0.31 | 39 | 61 |
117 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 13 | 50.4 | 2.8 | 0.16 | 0.22 | 57 | 43 |
117-A | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 13 | 50.4 | 4.2 | 0.25 | 0.33 | 35 | 65 |
125 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | N.A | 2 | 51.5 | 161 | 24 | N.A | 0.47 | 7 | 93 |
128 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | N.A | 2 | 9.3 | 46 | 2.8 | N.A | 0.30 | 40 | 60 |
129 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | N.A | 2 | 49.3 | 115 | 18.5 | N.A | 0.38 | 25 | 75 |
130 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 1.5 | 2 | 35 | 130 | 10.5 | 0.23 | 0.30 | 40 | 60 |
131 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 0.5 | 1 | 8.5 | 15 | 1.2 | 0.04 | 0.07 | 72 | 28 |
132 | US (AA):1200/IS: 19000 | 1220 TO 1525 mm | 2400 TO 4000 mm | 0.9 | 1.2 | 20 | 40 | 2 | 0.05 | 0.06 | 80 | 20 |
